Skeena

Make and Model: mercedes Sprinter

Wheel Base: 170

Roof Height: High Roof

Drive: AWD

skeena 1.jpg
skeena 2.jpg
skeena 3.jpg
skeena 4.jpg
skeena 5.jpg
skeena 6.jpg
skeena 7.jpg
skeena 8.jpg
skeena 9.jpg
skeena 10.jpg
skeena 11.jpg
skeena 12.jpg
skeena 13.jpg

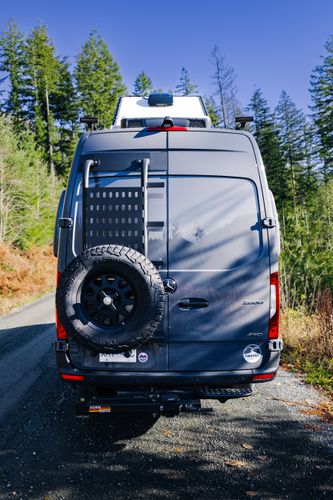

skeena 14.jpg

Build Highlights:

Comfort & Climate Control

  • Espar Hydronic diesel heater provides hot air and on-demand hot water for efficient year-round comfort.
  • Espar 2D heater supplies additional heat with an outlet into the rooftop tent.
  • Dometic 12V air conditioner above the bed keeps the interior cool in warm weather.
  • MaxxAir 7500K vent fan in the rooftop tent offers excellent ventilation with remote control.

Insulation & Flooring

  • 3M Thinsulate™ and Thermozite insulation throughout walls, ceiling, doors, and pillars for enhanced temperature regulation and noise control.
  • HushMat sound-deadening in wall and ceiling cavities creates a quieter interior.
  • Thermozite floor insulation with subfloor panels and air space increases thermal efficiency.
  • Lonseal marine flooring provides durable, easy-clean performance.

Interior Finish

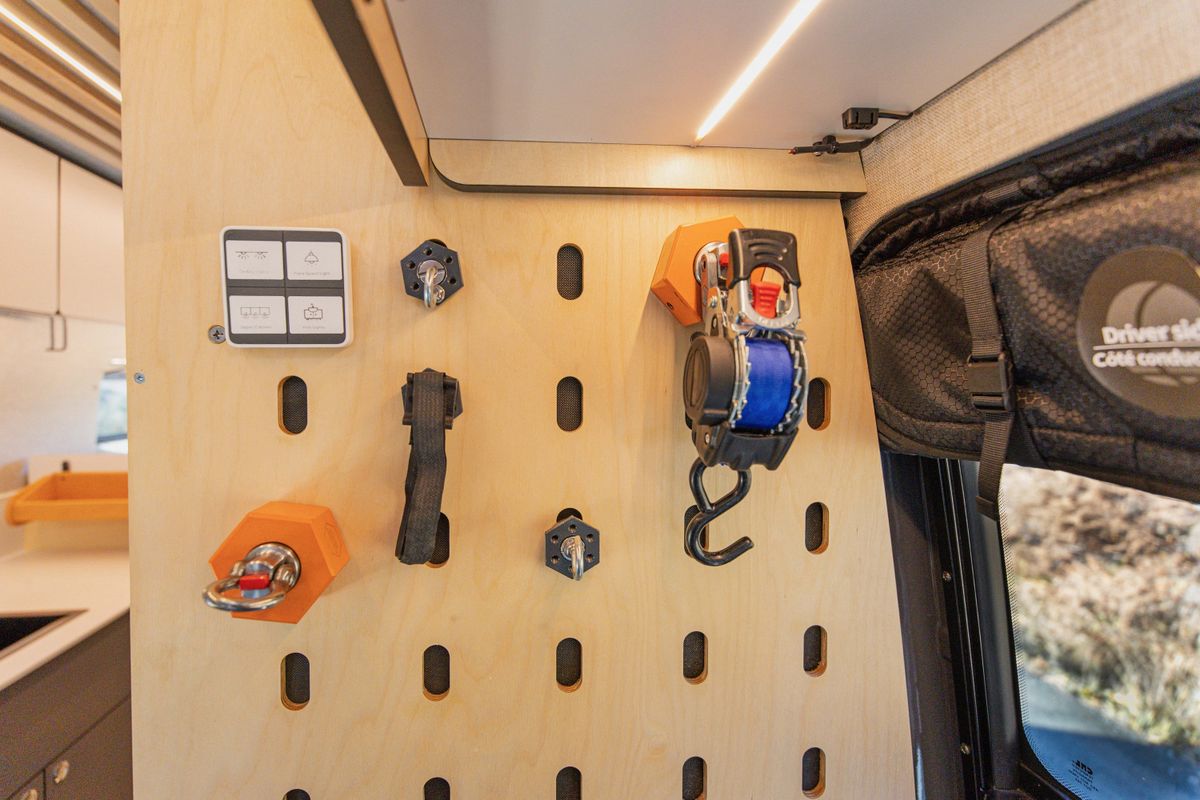

  • Precision CNC-cut wall and ceiling panels with Cargo Clips system for modular functionality.
  • Fabric wall panels add a refined, soft-touch interior finish.

Electrical System

  • 840Ah lithium battery system paired with a Nations secondary alternator for powerful, efficient charging.
  • 2kW pass-through inverter, 30A shore power, MPPT controller, and Victron Cerbo GX touchscreen for full system management.
  • LED lighting across ceiling, entrance, galley, bed, and garage zones, plus reading and toe-kick lighting.
  • Convenient 120V, USB, and 12V outlets throughout the cabin.
  • Pre-wired for 300W solar on the rooftop tent and wired for rear door speakers.

Plumbing & Appliances

  • 26-gallon fresh water tank and custom heat-traced grey water tank with bypass valve and hose drain.
  • TEC sink with pull-out faucet and cutting board insert for practical galley use.
  • Rear outdoor shower with hot and cold water.
  • Guzzle H2O filtration system with 12V pump.
  • Trelino composting toilet stored in a dedicated drawer.

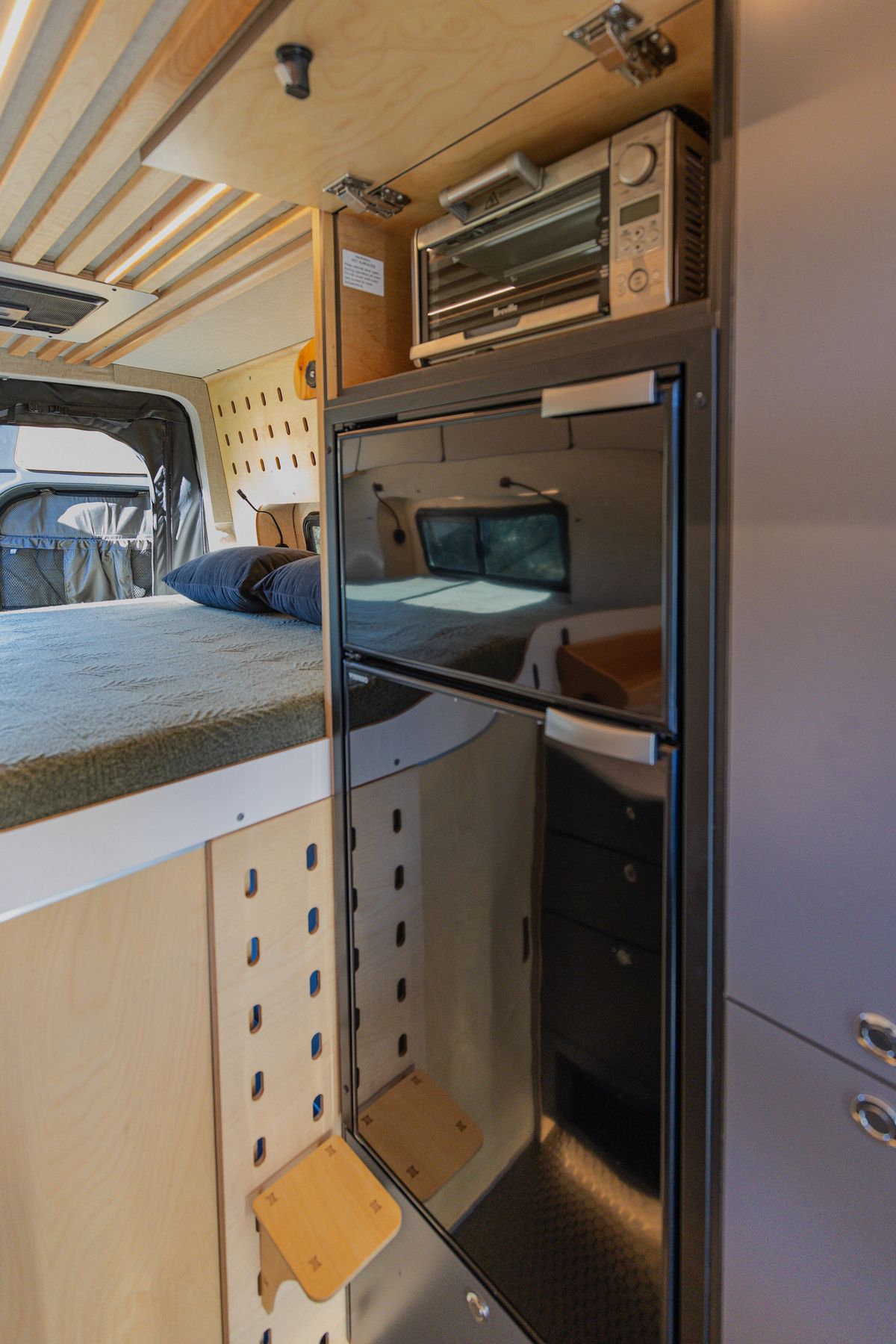

  • Vitrifrigo 150 fridge delivers reliable cooling for extended travel.
  • 12V oven integrated into the galley storage system.

Cabinetry & Bed System

  • All cabinetry crafted from laminated Baltic Birch plywood for strength and modern appeal.

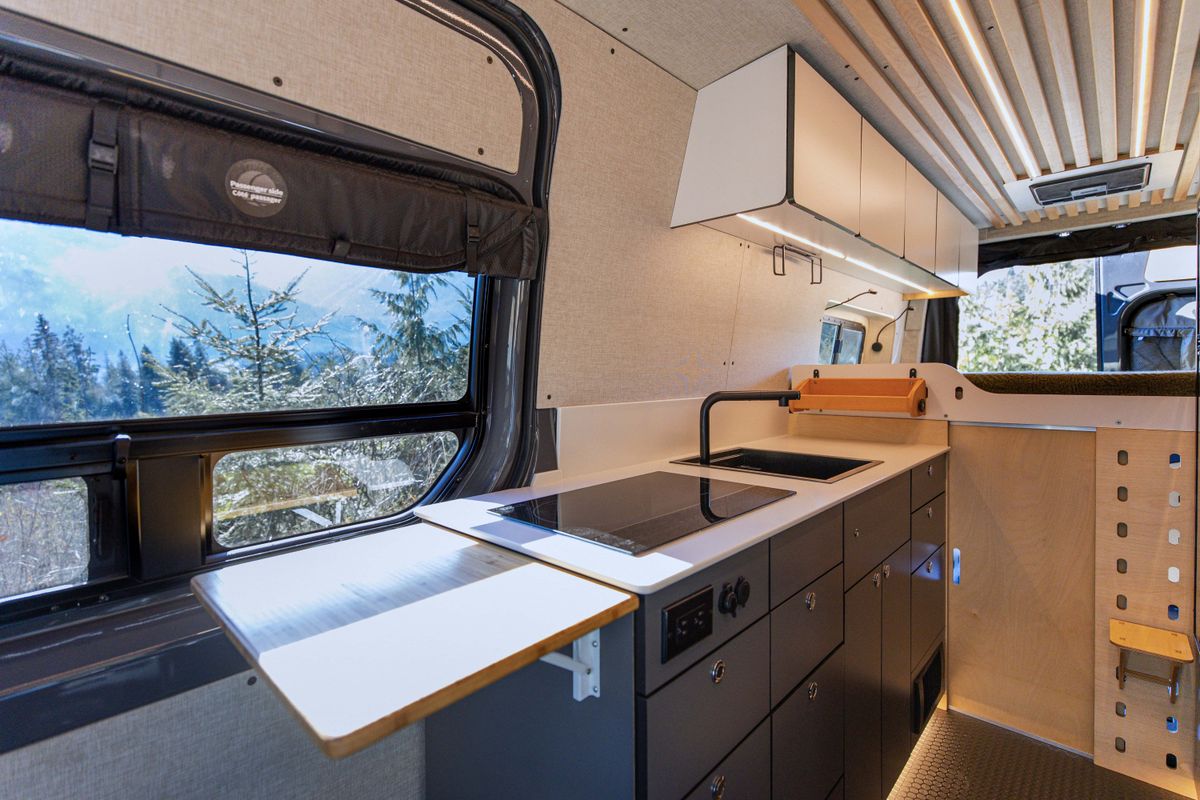

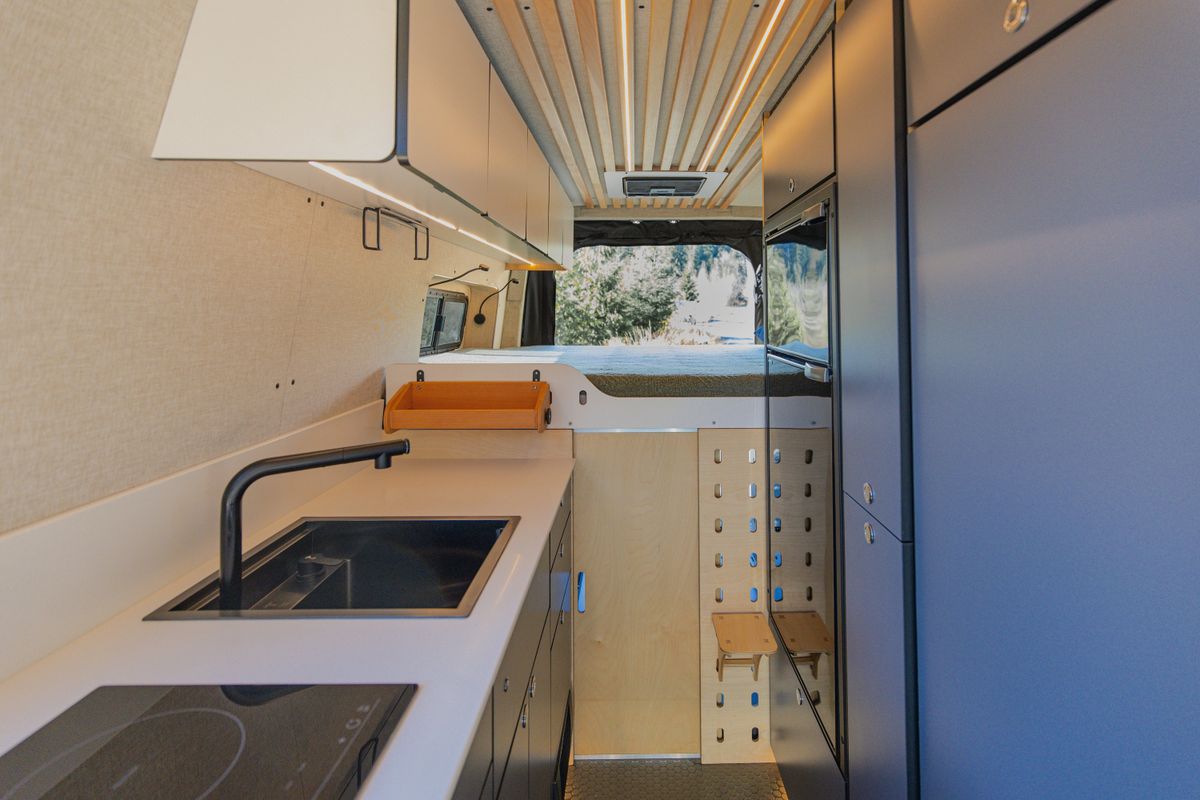

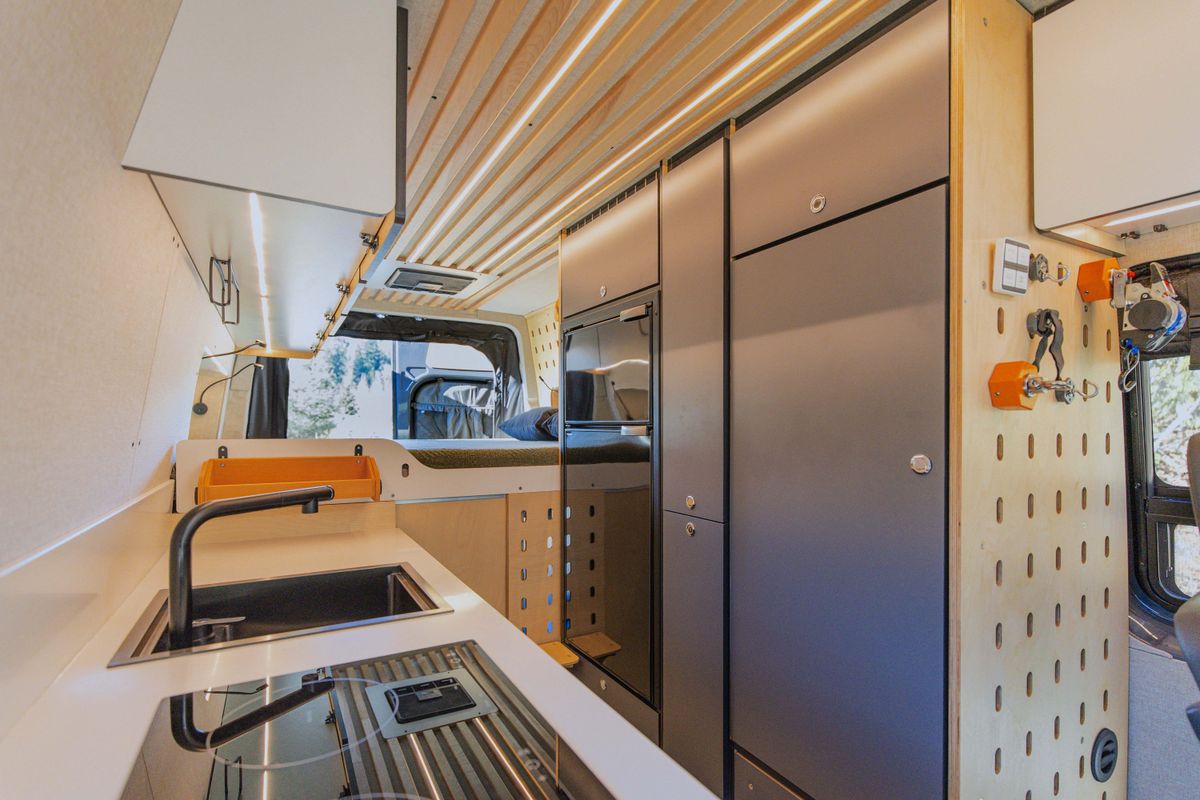

  • Passenger-side galley with 2-burner flush-mount induction stove, TEC sink, drawer bank, and bamboo flip-up counter extension.
  • Durable solid-surface countertops throughout.

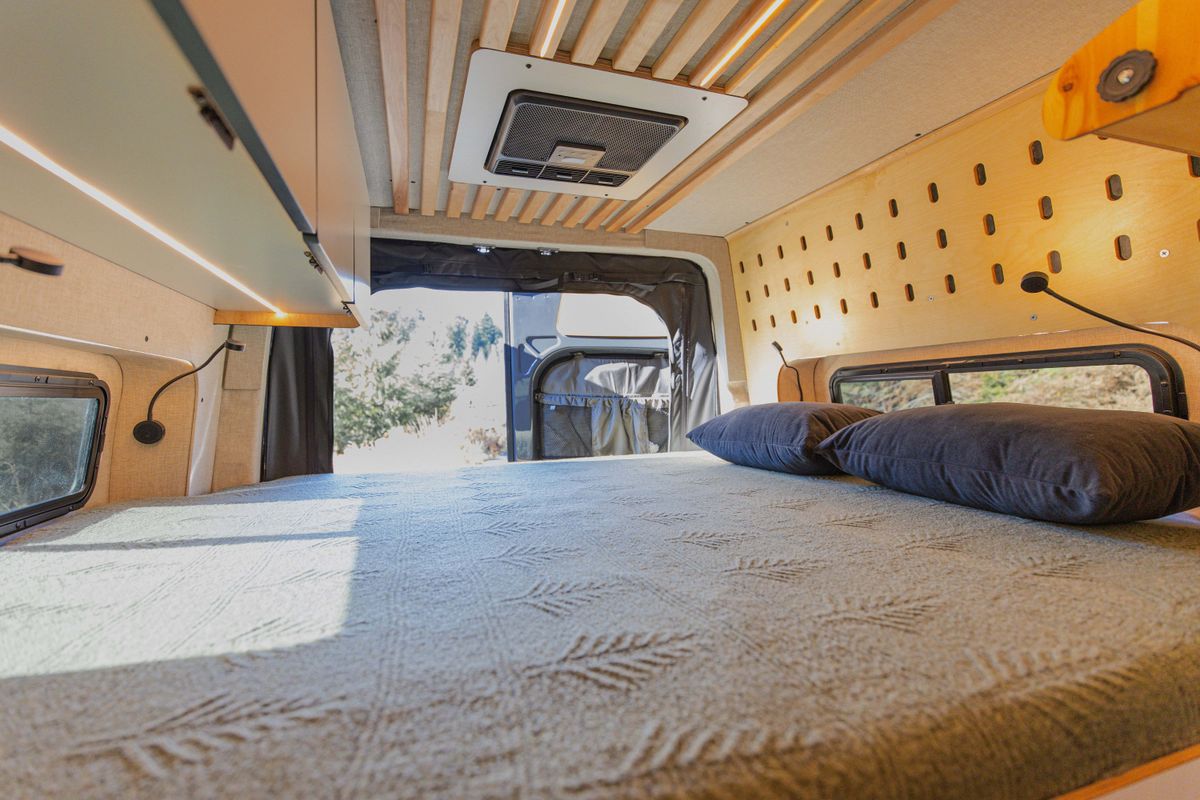

  • Raised bed platform approx. 60" × 76" at 38" height with aluminum rails.
  • VanEquipped folding seats with center-mounted bamboo tables.

Glazing & Roof Systems

  • CRL T-Vent windows on driver and passenger sides for increased airflow.
  • Flarespace flares with sliding windows and LED lighting expand the sleeping area.

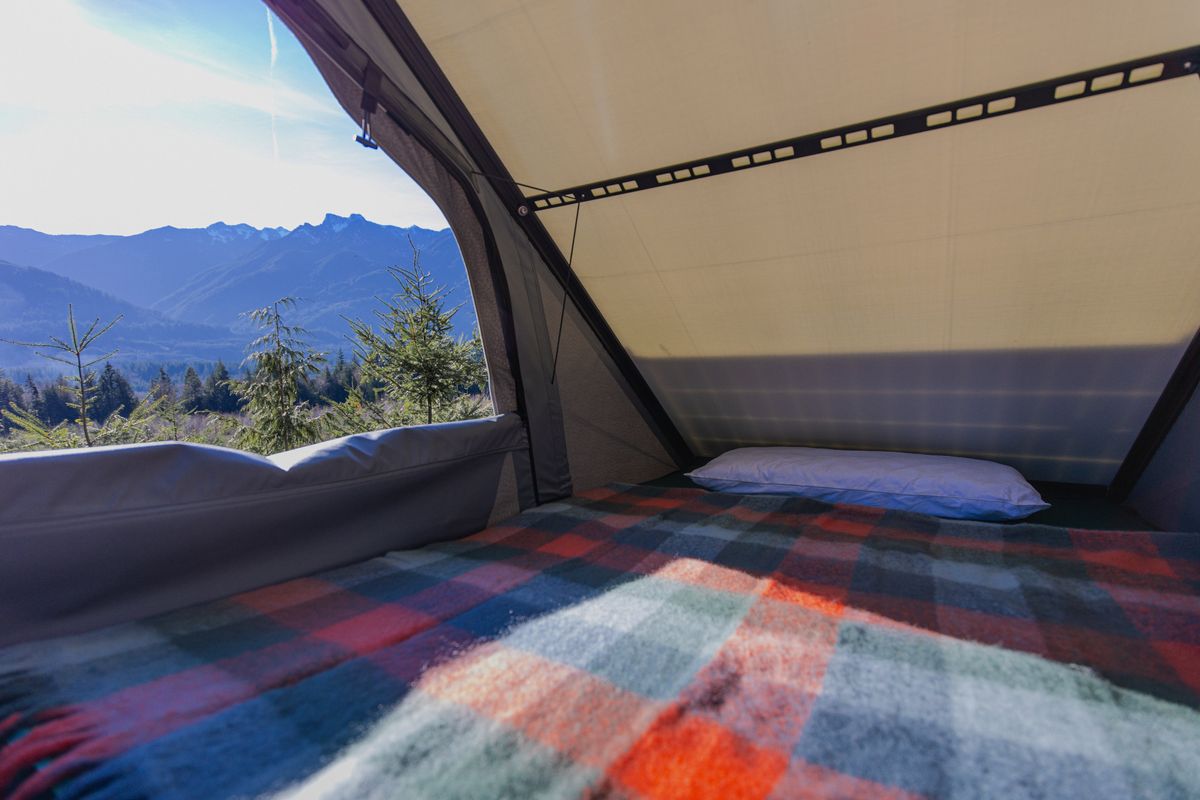

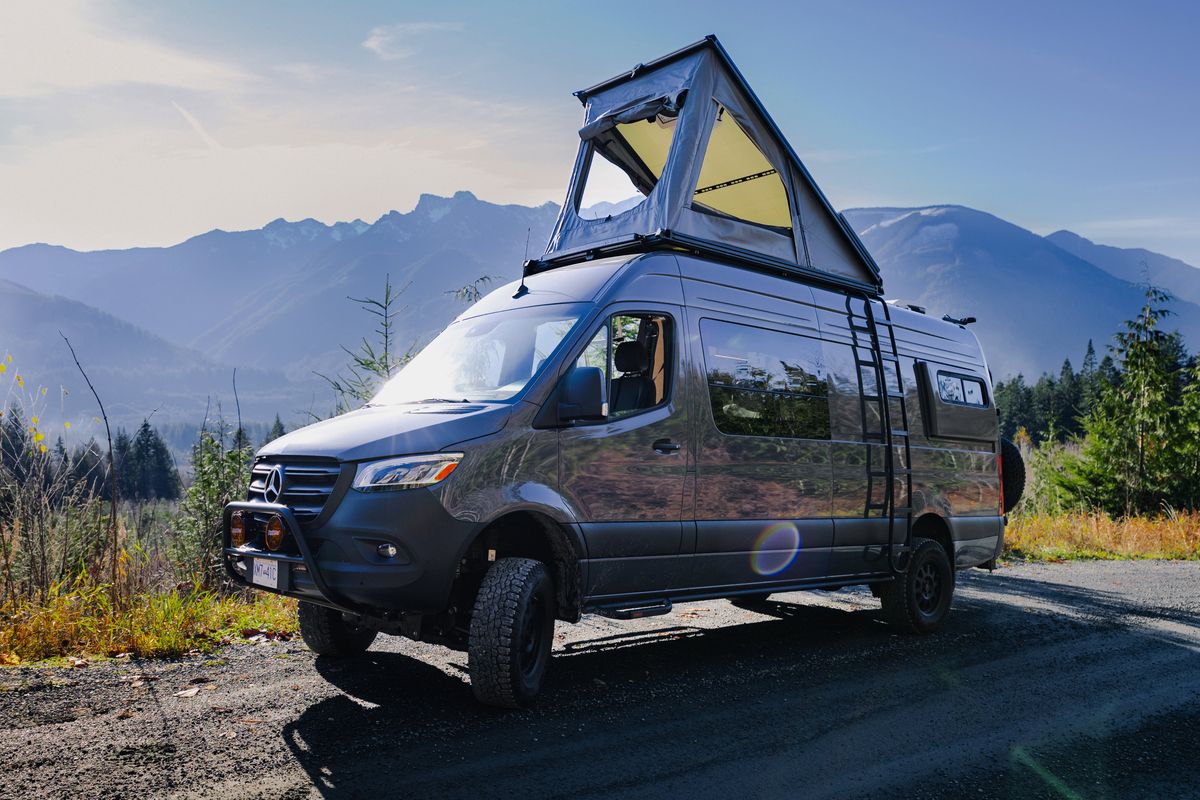

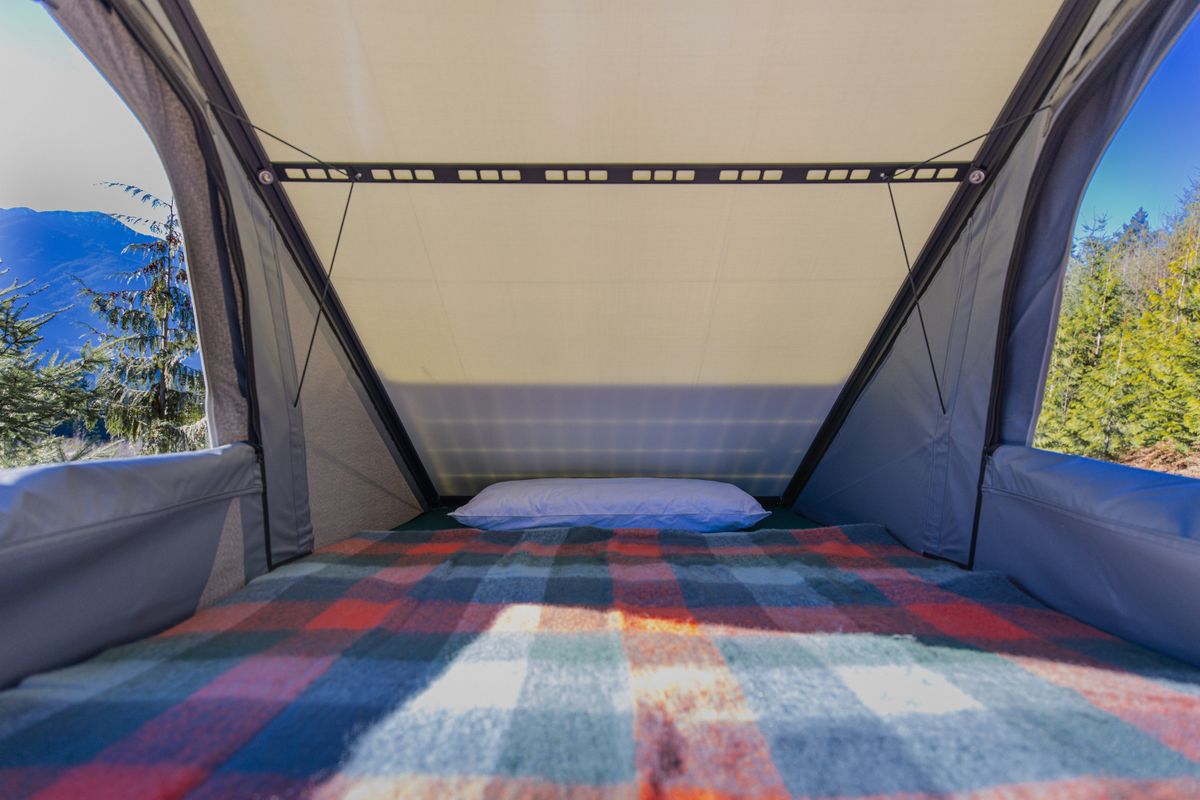

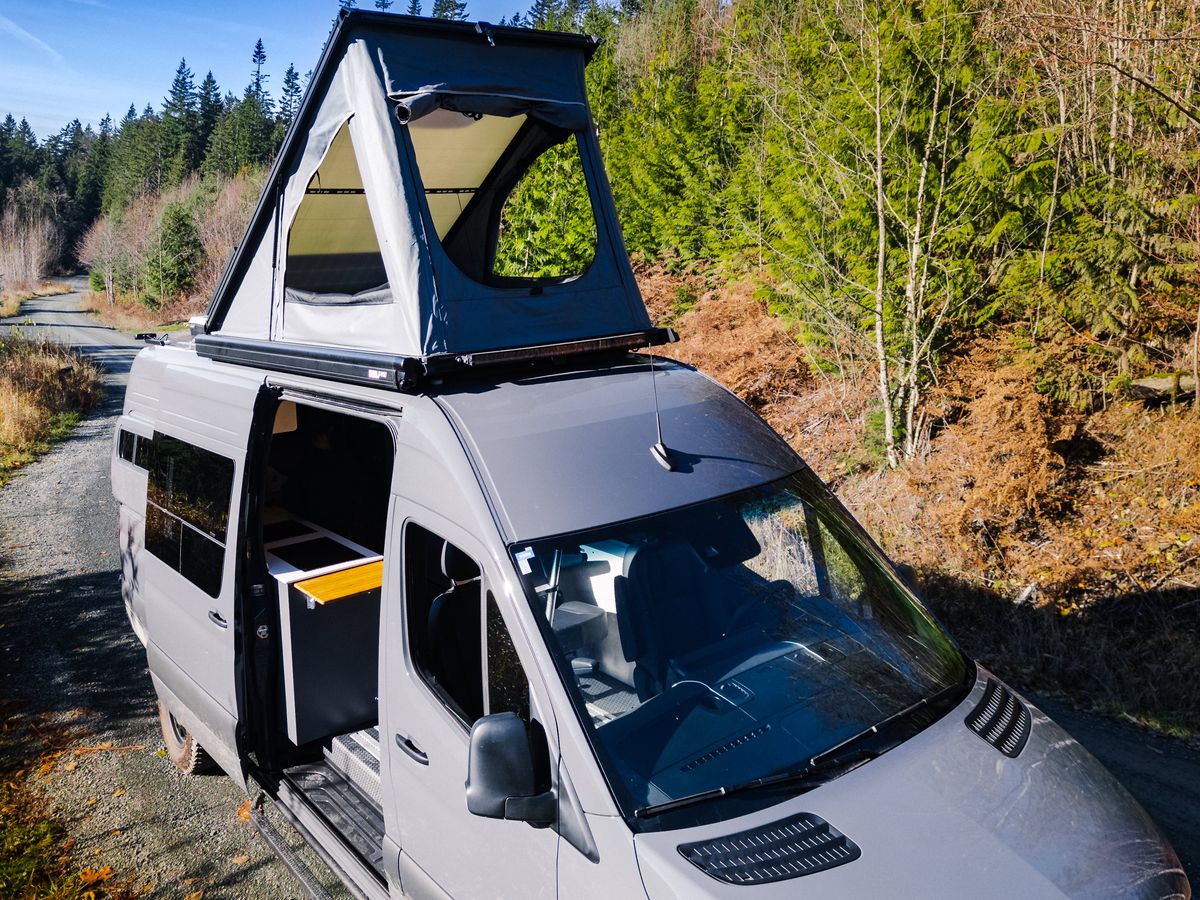

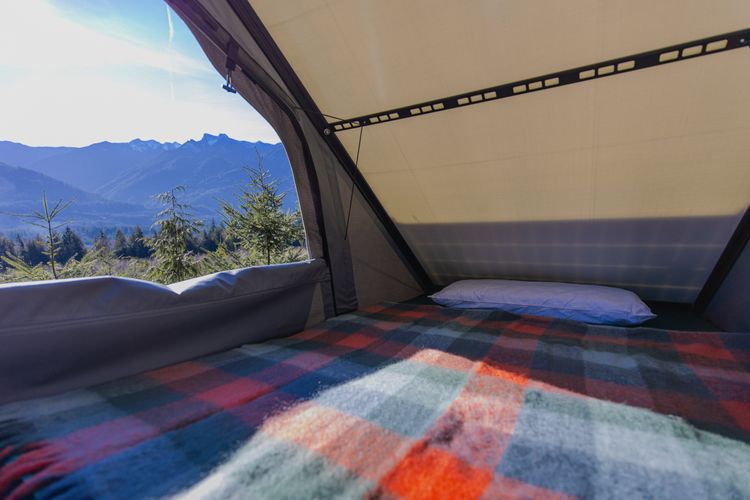

  • CloudCap rooftop tent with interior access adds additional sleeping and ventilation capacity.

Exterior Add-Ons

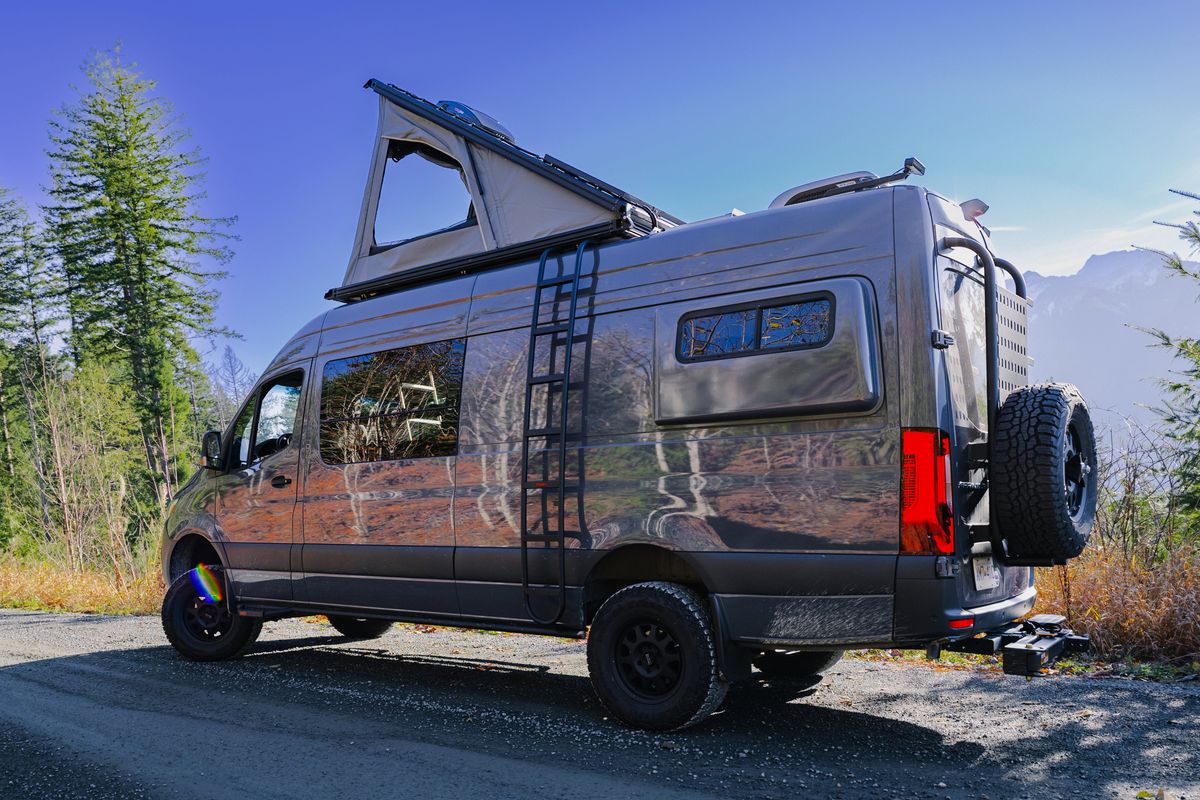

  • MOAB side ladder for easy rooftop access.
  • MOAB brush guard with integrated LED lighting for added protection and visibility.
  • Fiamma F45S awning mounted to the rooftop tent with LED lighting for outdoor living.

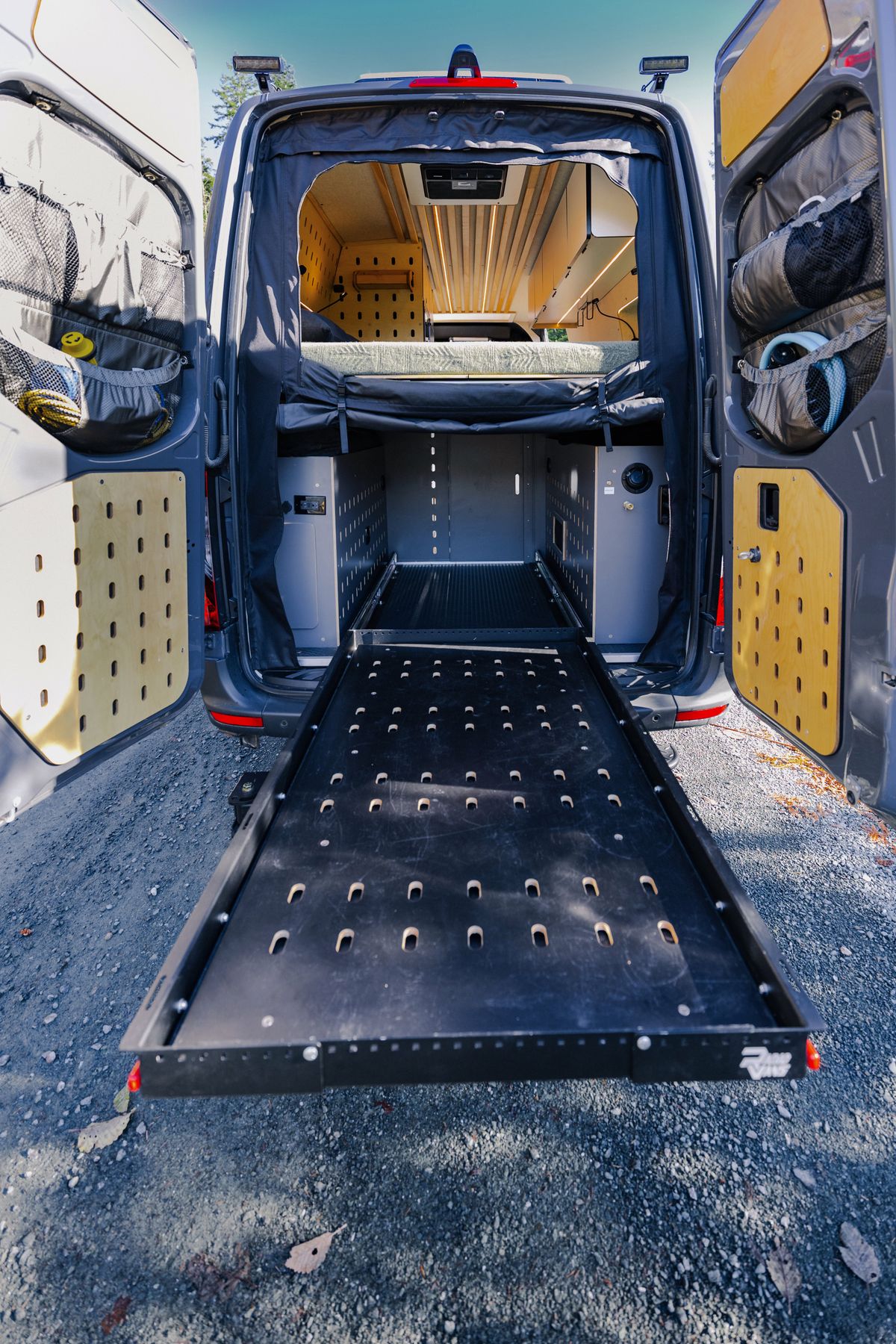

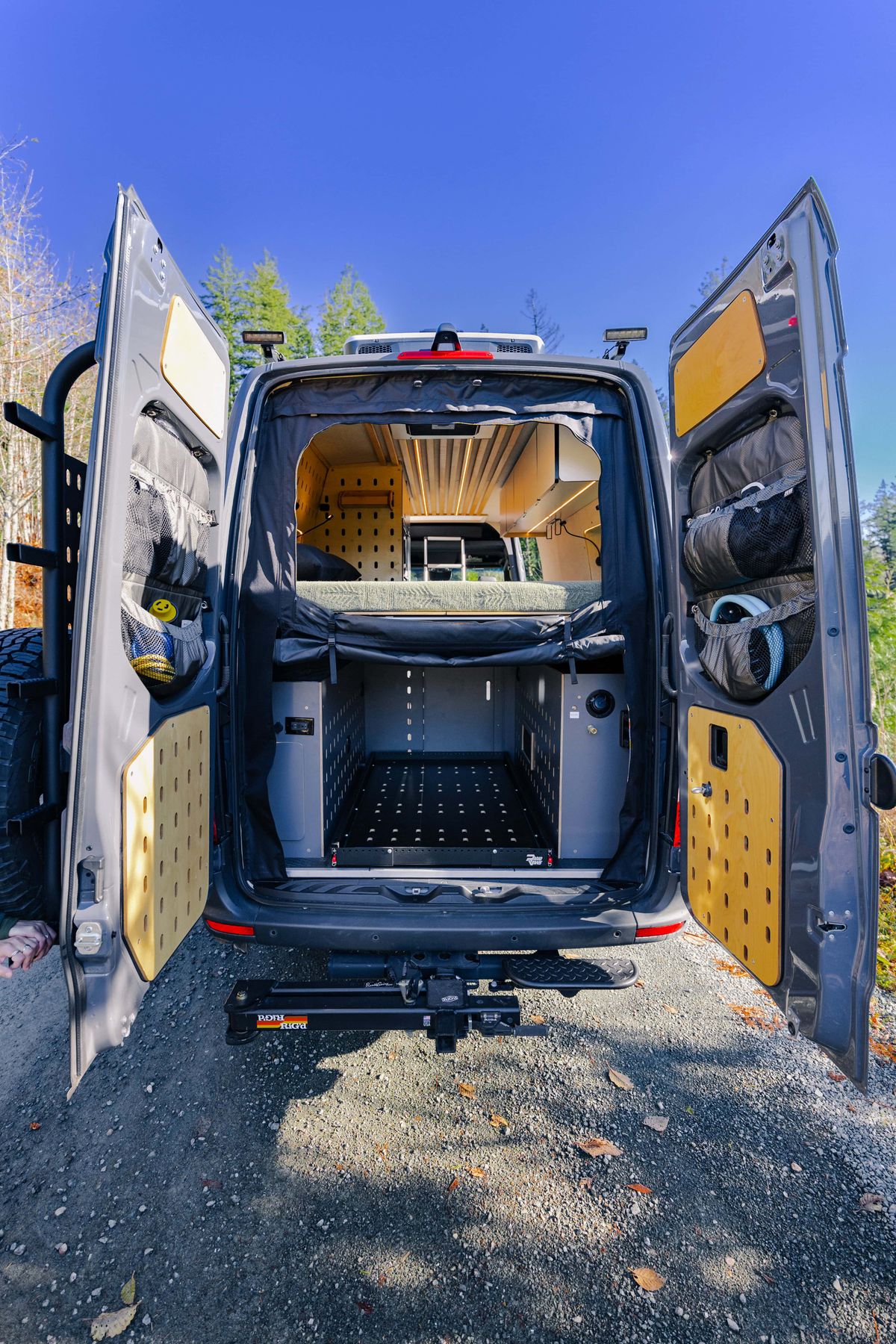

  • Custom aluminum slide-out bike tray built to spec for secure transport.
  • VanCompass adjustable suspension kit for improved off-road ride quality.
  • ARB dual-outlet air compressor for tire and gear inflation.
  • OWL extended fuel tank for increased driving range.
  • 50" roof-mounted LED light bar for powerful forward illumination.
